ST_Densify

Signature

GEOMETRY ST_Densify(GEOMETRY geom, DOUBLE tolerance);

Description

Densifies geom by inserting extra vertices along the line segments it contains using a distance tolerance.

Examples

-- Points are invariant under densification
SELECT ST_Densify('POINT(14 2)', 10);
-- Answer: POINT(14 2)

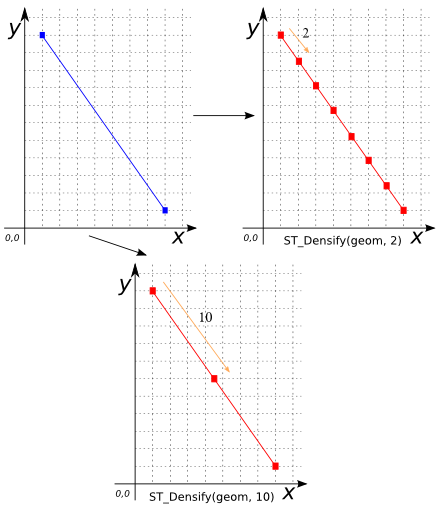

SELECT ST_Densify('LINESTRING(1 11, 8 1)', 2);
-- Answer: LINESTRING(1 11, 2 9.5714, 3 8.1428,
--                    4 6.7142, 5 5.2857, 6 3.85714,
--                    7 2.4285, 8 1)

SELECT ST_Densify('LINESTRING(1 11, 8 1)', 10);
-- Answer: LINESTRING(1 11, 4.5 6, 8 1)

SELECT ST_Densify('POLYGON((2 0, 2 8, 4 8, 4 0, 2 0))', 4.5)
-- Answer: POLYGON((2 0, 2 4, 2 8, 4 8, 4 4, 4 0, 2 0))
