ST_FlipCoordinates

Signature

GEOMETRY ST_FlipCoordinates(GEOMETRY geom);

Description

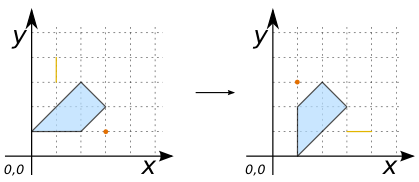

Returns a version of the given geometry with X and Y axis flipped.

Useful to flip latitude/longitude coordinates.

Examples

Cases with a simple GEOMETRY
SELECT ST_FlipCoordinates('POINT(1 2)');
-- Answer: POINT (2 1)

SELECT ST_FlipCoordinates('LINESTRING(1 2, 3 3, 5 9)');
-- Answer: LINESTRING (2 1, 3 3, 9 5)

SELECT ST_FlipCoordinates('POLYGON ((0 1, 2 3, 3 2, 2 1, 0 1))');
-- Answer: POLYGON ((1 0, 3 2, 2 3, 1 2, 1 0))

Case with a Z coordinate

SELECT ST_FlipCoordinates('POINT(1 2 5)');
-- Answer: POINT (2 1 5)
Case with a MULTIGEOMETRY
SELECT ST_FlipCoordinates('MULTIPOLYGON(((1 0, 1 3, 2 1, 1 0)),
  					((1 4, 3 1, 3 4, 1 4)))');
-- Answer: MULTIPOLYGON(((0 1, 3 1, 1 2, 0 1)),
--			((4 1, 1 3, 4 3, 4 1)))
Case with a GEOMETRYCOLLECTION
SELECT ST_FlipCoordinates('GEOMETRYCOLLECTION (
			POINT (3 1),
			LINESTRING (1 4, 1 3),
			POLYGON ((0 1, 2 3, 3 2, 2 1, 0 1)))');
-- Answer: GEOMETRYCOLLECTION(POINT (1 3),
--			      LINESTRING (4 1, 3 1),
--			      POLYGON ((1 0, 3 2, 2 3, 1 2, 1 0)))
