# ST_Within

### Description

Returns true if `geomA` is within `geomB`.

Within means that every point of `geomA` is a point of `geomB`, and the interiors of the two geometries have at least one point in common.

As a consequence, the following are equivalent:

• `ST_Within(geomA, geomB)` and `ST_Within(geomB, geomA)` are true.
• `ST_Equals(geomA, geomB)` is true.

### Examples

##### Cases where `ST_Within` is true

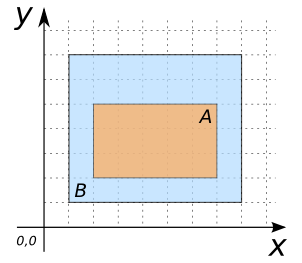

geomA POLYGON geomB POLYGON
POLYGON((2 2, 7 2, 7 5, 2 5, 2 2)) POLYGON((1 1, 8 1, 8 7, 1 7, 1 1))

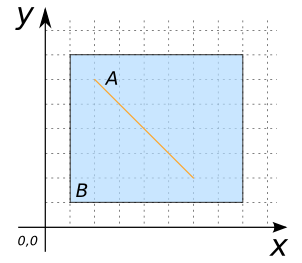

geomA LINESTRING geomB POLYGON
LINESTRING(2 6, 6 2) POLYGON((1 1, 8 1, 8 7, 1 7, 1 1))

geomA POINT geomB POLYGON
POINT(4 4) POLYGON((1 1, 8 1, 8 7, 1 7, 1 1))

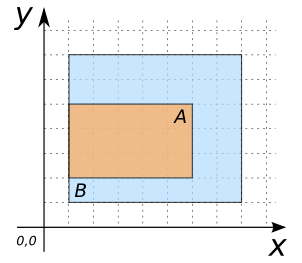

geomA POLYGON geomB POLYGON
POLYGON((1 2, 6 2, 6 5, 1 5, 1 2)) POLYGON((1 1, 8 1, 8 7, 1 7, 1 1))

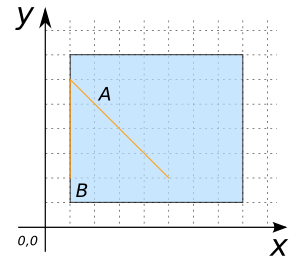

geomA LINESTRING geomB POLYGON
LINESTRING(1 2, 1 6, 5 2) POLYGON((1 1, 8 1, 8 7, 1 7, 1 1))

geomA LINESTRING geomB LINESTRING
LINESTRING(3 5, 5 3) LINESTRING(2 1, 5 3, 2 6)

geomA POINT geomB LINESTRING
POINT(4 4) LINESTRING(2 1, 5 3, 2 6)

##### Cases where `ST_Within` is false

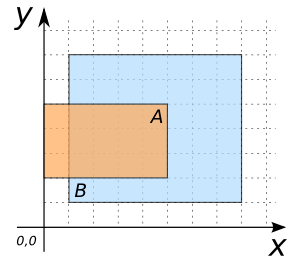

geomA POLYGON geomB POLYGON
POLYGON((0 2, 5 2, 5 5, 0 5, 0 2)) POLYGON((1 1, 8 1, 8 7, 1 7, 1 1))

geomA LINESTRING geomB POLYGON
LINESTRING(2 6, 0 8) POLYGON((1 1, 8 1, 8 7, 1 7, 1 1))

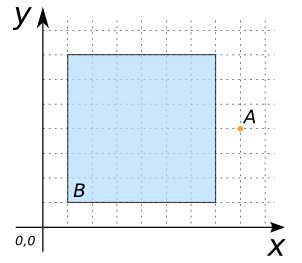

geomA POINT geomB POLYGON
POINT(8 4) POLYGON((1 1, 8 1, 8 7, 1 7, 1 1))

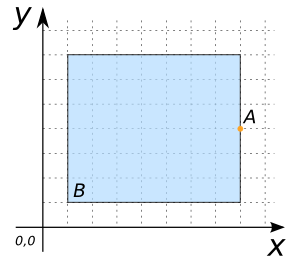

geomA POINT geomB POLYGON
POINT(8 4) POLYGON((1 1, 7 1, 7 7, 1 7, 1 1))
