ST_EnvelopesIntersect

Signatures

BOOLEAN ST_EnvelopesIntersect(GEOMETRY geomA, GEOMETRY geomB);

Description

Returns true if the envelope of geomA intersects the envelope of geomA.

As a consequence, if ST_Intersects(geomA, geomB) is true, then ST_EnvelopesIntersect(geomA, geomB) is true.

Examples

Cases where ST_EnvelopesIntersect is true
SELECT ST_EnvelopesIntersect(geomA, geomB) FROM input_table;
-- Answer:    TRUE

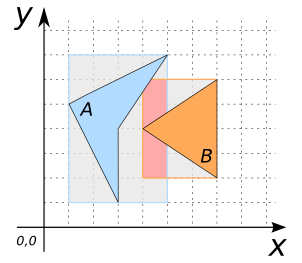

geomA POLYGON geomB POLYGON
POLYGON((3 1, 3 4, 5 7, 1 5, 3 1)) POLYGON((7 2, 7 6, 4 4, 7 2))

geomA LINESTRING geomB LINESTRING
LINESTRING(2 2, 6 3, 3 6) LINESTRING(1 4, 2 5, 4 3)

geomA MULTIPOINT geomB MULTIPOINT
MULTIPOINT((1 4), (3 5), (5 2)) MULTIPOINT((3 3), (4 4), (6 6))

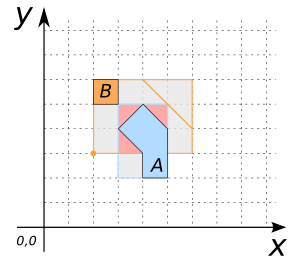

geomA POLYGON geomB GEOMETRYCOLLECTION
POLYGON((4 2, 5 2, 5 4, 4 5, 3 4, 4 3, 4 2)) GEOMETRYCOLLECTION(POINT(2 3), LINESTRING(6 4, 4 6), POLYGON((2 5, 3 5, 3 6, 2 6, 2 5)))

Cases where ST_EnvelopesIntersect is false
SELECT ST_EnvelopesIntersect(geomA, geomB) FROM input_table;
-- Answer:    FALSE

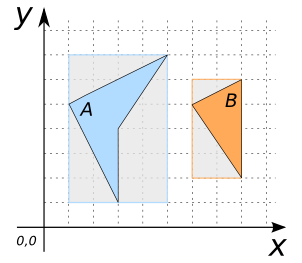

geomA POLYGON geomB POLYGON
POLYGON((3 1, 3 4, 5 7, 1 5, 3 1)) POLYGON((8 2, 8 6, 6 5, 8 2))
