ST_Contains

Signatures

BOOLEAN ST_Contains(GEOMETRY geomA, GEOMETRY geomB);

Description

Returns true if geomA contains geomB.

Implements the OpenGIS Simple Features Implementation Specification for SQL version 1.2.1.
This predicate does not yet support spatial indices, but it will in a future release. Use it in conjunction with && operator. See here for more details.

Examples

Cases where ST_Contains is true
SELECT ST_Contains(geomA, geomB) FROM input_table;
-- Answer:    TRUE

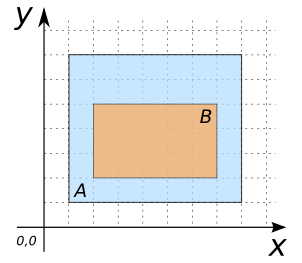

geomA POLYGON geomB POLYGON
POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) POLYGON((2 2, 7 2, 7 5, 2 5, 2 2))

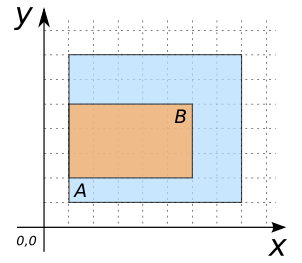

geomA POLYGON geomB POLYGON
POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) POLYGON((1 2, 6 2, 6 5, 1 5, 1 2))

geomA POLYGON geomB LINESTRING

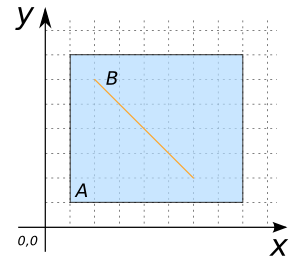

POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) LINESTRING(2 6, 6 2)

geomA POLYGON geomB LINESTRING

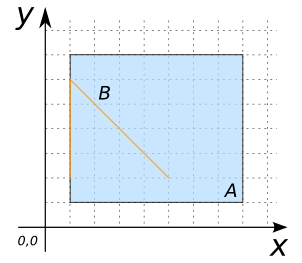

POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) LINESTRING(1 2, 1 6, 5 2)

geomA POLYGON geomB POINT

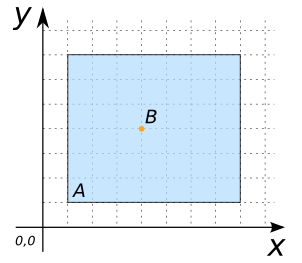

POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) POINT(4 4)

geomA LINESTRING geomB LINESTRING
LINESTRING(2 1, 5 3, 2 6) LINESTRING(3 5, 5 3)

geomA LINESTRING geomB POINT
LINESTRING(2 1, 5 3, 2 6) POINT(4 4)

Cases where ST_Contains is false
SELECT ST_Contains(geomA, geomB) FROM input_table;
-- Answer:    FALSE
geomA POLYGON geomB POLYGON

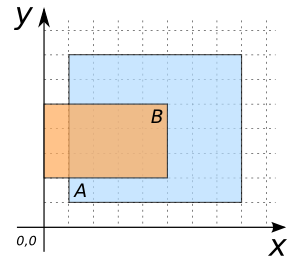

POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) POLYGON((0 2, 5 2, 5 5, 0 5, 0 2))

geomA POLYGON geomB LINESTRING

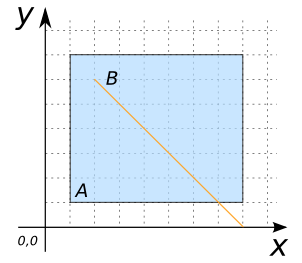

POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) LINESTRING(2 6, 0 8)

geomA POLYGON geomB LINESTRING

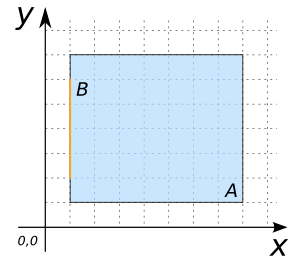

POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) LINESTRING(1 2, 1 6)

geomA POLYGON geomB POINT

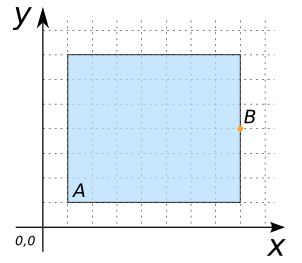

POLYGON((1 1, 8 1, 8 7, 1 7, 1 1)) POINT(8 4)

geomA POLYGON geomB POINT

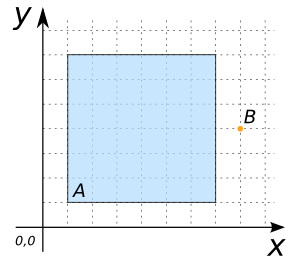

POLYGON((1 1, 7 1, 7 7, 1 7, 1 1)) POINT(8 4)
