ST_SymDifference

Signatures

GEOMETRY ST_SymDifference(GEOMETRY geomA, GEOMETRY geomB);

Description

Computes the symmetric difference between geomA and geomB.

Implements the OpenGIS Simple Features Implementation Specification for SQL version 1.2.1.

Example

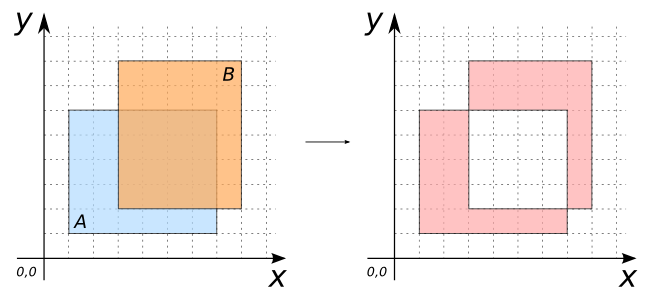

geomA Polygon geomB Polygon
POLYGON((1 1, 7 1, 7 6, 1 6, 1 1)) POLYGON((3 2, 8 2, 8 8, 3 8, 3 2))
SELECT ST_SymDifference(geomA, geomB) FROM input_table;
-- Answer: MULTIPOLYGON(((1 1, 7 1, 7 2, 3 2, 3 6, 1 6, 1 1)),
--                      ((7 2, 8 2, 8 8, 3 8, 3 6, 7 6, 7 2)))
