ST_MakeGridPoints

Signature

TABLE[NODE_GEOM, ID, ID_COL, ID_ROW]
    ST_MakeGridPoints(GEOMETRY geom,
                      DOUBLE deltaX, DOUBLE deltaY);
TABLE[NODE_GEOM, ID, ID_COL, ID_ROW]
    ST_MakeGridPoints(VARCHAR tableName,
                      DOUBLE deltaX, DOUBLE deltaY);

Description

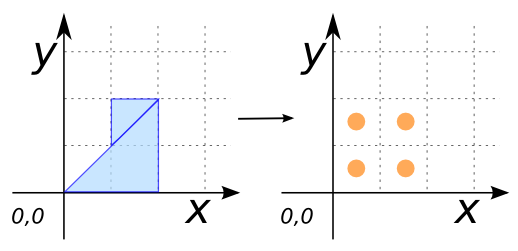

Calculates a regular grid of POINTs based on a single Geometry geom or a table tableName of Geometries with deltaX and deltaY as offsets in the Cartesian plane.

Examples

-- Using a Geometry:
CREATE TABLE grid AS SELECT * FROM
    ST_MakeGridPoints('POLYGON((0 0, 2 0, 2 2, 0 0))'::GEOMETRY,
                      1, 1);
SELECT * FROM grid;
--Answer:
-- |    NODE_GEOM    |  ID | ID_COL | ID_ROW |
-- | --------------- | --- | ------ | ------ |
-- | POINT(0.5 0.5)  |   0 |      1 |      1 |
-- | POINT(1.5 0.5)  |   1 |      2 |      1 |
-- | POINT(0.5 1.5)  |   2 |      1 |      2 |
-- | POINT(1.5 1.5)  |   3 |      2 |      2 |

-- Using a table:
CREATE TABLE TEST(THE_GEOM GEOMETRY);
INSERT INTO TEST VALUES ('POLYGON((0 0, 2 0, 2 2, 0 0))');
CREATE TABLE grid AS SELECT * FROM
    ST_MakeGridPoints('TEST'::GEOMETRY, 1, 1);
SELECT * FROM grid;
--Answer:
-- |    NODE_GEOM    |  ID | ID_COL | ID_ROW |
-- | --------------- | --- | ------ | ------ |
-- | POINT(0.5 0.5)  |   0 |      1 |      1 |
-- | POINT(1.5 0.5)  |   1 |      2 |      1 |
-- | POINT(0.5 1.5)  |   2 |      1 |      2 |
-- | POINT(1.5 1.5)  |   3 |      2 |      2 |

-- Using a subquery to construct a Geometry:
CREATE TABLE TEST2(THE_GEOM GEOMETRY);
INSERT INTO TEST2 VALUES
    ('POLYGON((0 0, 2 0, 2 2, 0 0))'),
    ('POLYGON((1 1, 2 2, 1 2, 1 1))');
CREATE TABLE grid AS SELECT * FROM
    ST_MakeGridPoints(
        (SELECT ST_Union(ST_Accum(THE_GEOM)) FROM TEST2),
        1, 1);
SELECT * FROM grid;
--Answer:
-- |    NODE_GEOM    |  ID | ID_COL | ID_ROW |
-- | --------------- | --- | ------ | ------ |
-- | POINT(0.5 0.5)  |   0 |      1 |      1 |
-- | POINT(1.5 0.5)  |   1 |      2 |      1 |
-- | POINT(0.5 1.5)  |   2 |      1 |      2 |
-- | POINT(1.5 1.5)  |   3 |      2 |      2 |
